CNC Machining of Precision Metal Parts for Medical Devices: Quality Control from Material Traceability to Clean Packaging

Why Can't CNC Machining of Metal Parts for Medical Devices Be Evaluated by the Dimensional Report Alone?

A metal part for a medical device may pass all requirements on the final dimensional report, yet reveal burrs at hole entrances, surface treatment residue, or particles inside the package during assembly. Dimensional conformity does not mean that the part is ready for assembly, cleaning, and traceable delivery. In particular, at locations such as cross-holes, threads, and sealing grooves, problems may not be found on the measured surfaces but may remain hidden in areas that only come into contact during assembly or after cleaning.

The release logic for precision metal parts for medical devices should be understood as product requirements + process controls + objective records. Whether the material came from the specified batch, whether difficult-to-remove burrs or residue formed during machining, whether surface treatment affected critical dimensions, and whether final cleaning and packaging reintroduced contamination all need to be linked to the part batch. The dimensional report is only one type of evidence and cannot replace confirmation of material, special processes, appearance, and packaging condition.

Therefore, during procurement or first-article confirmation, it is not enough to ask only whether the parts can be machined to the drawing tolerances. You should also confirm the material traceability scope, definitions of critical surfaces, burr acceptance criteria, boundaries of surface treatments, inspection records, and clean packaging conditions. Quality management frameworks such as ISO 13485 emphasize lifecycle management, risk, and traceability, but this does not mean that a certification or a dimensional report can automatically prove that every part is acceptable; the acceptance criteria for an individual project should still be based on the drawing, purchasing specifications, quality agreement, and applicable regulations.

How to Ensure Material Traceability for Medical Parts: From Linking Material Grades and Batches to Finished Products

Material traceability for precision metal parts used in medical devices does not end with writing “stainless steel” or “titanium alloy” on a purchase order. It must demonstrate that the material actually used for machining meets the project requirements and allow specific part batches to be traced when an abnormality occurs. The material grade, specifications, condition, and surface treatment conditions all affect cutting, corrosion resistance, dimensional stability, and compatibility with subsequent cleaning or sterilization.

How should a batch traceability chain be established for medical part materials?

A more complete chain typically starts with the supplier or heat number, proceeds through incoming material certification documents and cutting or material-issue records, links to the part production batch, and extends to the surface treatment batch and final inspection records. In this way, when a finished product has a material, coating, or dimensional issue, the purchaser can determine the scope of impact rather than checking each part solely by its part number.

• Drawing or purchasing specifications: Confirm the specific material grade, specifications, heat-treatment condition, and applicable standards.
• Incoming material records: Verify the material batch, quantity, condition, and agreed material certification documents.
• Production records: Retain the correspondence between cutting, material issuance, and part batches.
• Subsequent records: Link the surface treatment batch, final inspection results, and deviation disposition to the finished-product batch.

There is no single standard document checklist applicable to all medical parts. Whether specific material certifications are required, whether they must be provided for every batch, or whether they should be submitted according to the quality agreement must be jointly determined by the drawing, purchasing specifications, customer quality agreement, and applicable regulations. Confirming these requirements before requesting a quotation can prevent the discovery, only after machining is complete, that the material condition or traceability documents do not meet assembly and release requirements.

Deburring and Residue Control After CNC Machining of Medical Parts: Which Features Require Special Attention?

Deburring of medical parts cannot simply be specified as “smooth edges.” If burrs, chips, or cleaning-fluid residue remain in functional areas, they may affect assembly, sealing, or fluid passages, and may even detach during subsequent use. Complex internal cavities, deep holes, and cross-holes are generally more difficult to clean than exposed flat surfaces; control methods should be defined in conjunction with the part’s intended use and customer documentation.

Locations Prone to Chip Entrapment and Burr Formation in Medical CNC Machining

• Cross-holes, deep holes, and stepped holes: Tool intersections may form raised edges or leave residual chips, and the inside of the holes is not easy to inspect directly by visual examination.
• Threads, sealing grooves, and sharp edges: Small burrs may hinder threading, scratch seals, or alter local contact conditions.
• Sensor mounting surfaces, microfluidic channels, and areas near optical windows: Particles, oil contamination, or improper edge treatment may affect signal performance, fluid cleanliness, or assembly fit.
• Internal cavities that are difficult to observe directly: Magnified inspection, borescope inspection, or other specialized inspection methods should be agreed upon in advance; visual inspection alone must not be relied upon.

Procurement documents or drawings should separately specify chamfers or radii on critical edges, acceptable burr conditions, key inspection locations, and inspection magnification. After deburring, it is also necessary to confirm that chips, abrasives, and cleaning residues have been removed. Dimensional, visual, magnified inspection, and, where applicable, cleanliness results should be recorded separately according to project requirements. If burrs are found at hole openings, threads are damaged, or residues remain in internal cavities, the parts should first be segregated and evaluated for rework, reinspection, or deviation release; these forms of evidence cannot be replaced by a single dimensional report.

How Do Surface Treatment, Final Cleaning, and the Cleanliness of Medical Metal Parts Fit Together?

Surface treatment of medical metal parts is not an independent “final operation.” Passivation, anodizing, electropolishing, electroplating, or conversion coatings may alter coating thickness, roughness, dimensions, and masked areas, and may also introduce residues from processing solutions, particles, or oil. Therefore, cleaning controls for medical parts should be planned together with CNC machining, deburring, surface treatment, and packaging, rather than simply wiping the parts before delivery.

Establish the Cleaning Sequence and Critical Surfaces for Medical CNC Parts First

A generally more robust process logic is: remove machining residues and chips, complete deburring, and then perform surface treatment; after treatment, clean according to process requirements, carry out final cleaning, and then inspect and package under clean conditions. Microfluidic channels, sensor mounting surfaces, areas near optical windows, seal contact surfaces, threads, and deep holes are often more prone to contamination, chip accumulation, or masking effects than exposed flat surfaces. Whether cleaning is required both before and after surface treatment must not be decided uniformly based on experience; it should be confirmed based on the part’s application, residual risk, and the customer’s validation requirements.

• Specify the treatment areas, coating or appearance requirements, and the datum surfaces, threads, and sealing surfaces that must not be treated on the drawing or process agreement.
• Clearly define the condition for final cleaning: specify which fixtures, gloves, and handling methods may be used after cleaning is complete, so that particles or oil contamination are not reintroduced during ordinary operations.
• Require the cleaning, surface treatment, and release records to be traceable to the part lot. If critical surfaces have special cleanliness, roughness, or residue requirements, the inspection methods and delivery evidence should be defined at the same time.

How Should Critical Dimensions and Evidence Be Defined for Dimensional Inspection of Medical Metal Parts?

Dimensional inspection of precision metal parts for medical devices cannot be limited to submitting a measurement data sheet detached from the drawing. The inspection results must answer three questions: Which feature was measured, which datum was used for measurement, and which lot of parts does the result correspond to? Only when product requirements, measurement methods, and lot records are linked does a dimensional report have meaningful value as delivery evidence.

Distinguish Critical and General Dimensions According to Functional Risk

Dimensions can first be classified as critical dimensions, functional dimensions, and general dimensions. Hole diameter may affect the fit of a shaft or catheter, positional tolerance of a hole may affect the assembly datum, and the width and depth of a sealing groove relate to the compression state of the seal. For threads, the effective length, go/no-go gauge status, and burrs at the entrance should all be considered. For sensor mounting surfaces, areas near optical windows, and precision assembly surfaces, flatness, positional relationships, or surface condition should also be evaluated. Critical dimensions may require 100% inspection, special inspection, or a more stringent sampling plan, but the proportion and method should be determined by the drawing, tolerances, product risk, and quality agreement.

Make Measurement Equipment and Reports Traceable

Inspection records should state the datum system, measurement method, inspection gauges or measuring equipment used, and the basis confirming that the equipment was within its valid calibration period. For deep holes, internal threads, cross-holes, or features that are difficult to access, it must not be assumed that readings from an ordinary caliper are sufficient; the project documents should specify an appropriate inspection method. The report should also be linked to the part number, production lot, and inspection status. If an out-of-tolerance condition is found, the affected lot should first be segregated, followed by remeasurement, rework, deviation review, or release as agreed.

Control Boundaries for Clean Packaging of Medical CNC Parts: From the Cleaning Area to the Assembly Line

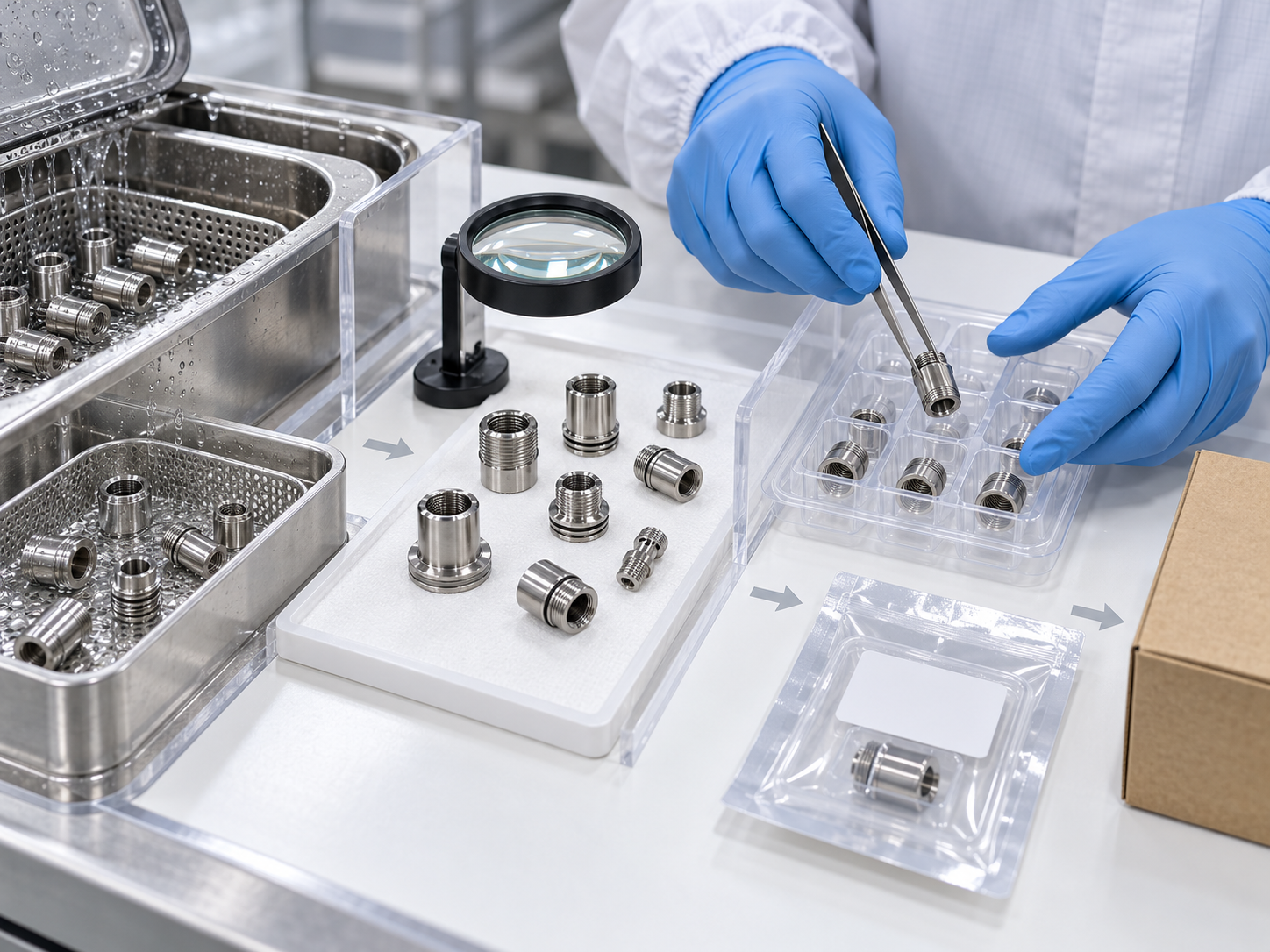

Clean packaging for medical CNC parts is not simply putting a plastic bag over them after cleaning. It is a continuously controlled process covering final cleaning, clean handling, inspection, and packaging. Non-sterile external equipment parts, parts that come into contact with fluids or the human body, and parts that will subsequently be sterilized may have different contamination risks and packaging requirements, so the same default standard cannot be applied to all of them.

How can medical CNC parts avoid recontamination after final cleaning?

After machining residue removal, deburring, and any necessary surface treatment are complete, it should be clearly defined who is responsible for final cleaning, where it is performed, which cleaning medium is used, and how the cleaned condition is released. During handling, contact with dirty tooling, ordinary workbenches, bare hands, oil contamination, and packaging materials that may shed particles should be avoided. Particular attention should be paid to deep holes, intersecting holes, threads, and sealing grooves to confirm that no chips, burrs, or cleaning-fluid residue remain. The site should be able to trace the parts to the cleaning batch, equipment or cleaning-medium status, and release records, rather than relying solely on visual inspection.

What requirements should be confirmed for the packaging and labeling of medical CNC parts?

Whether the packaging environment needs to be controlled, whether double packaging is required, the allowable particle level, and whether sterilization is involved should be determined based on the nature of product contact, customer technical documentation, current regulations, and validation results. Examples of clean environments in regulatory guidance cannot be directly applied to all CNC parts. At a minimum, labels should link the parts to the part number, production batch, quantity, inspection status, and any necessary surface-treatment or cleaning information. If the packaging is damaged, the label has detached, or the status is unclear, the parts should first be quarantined and reviewed rather than sent directly to the assembly line.

Pre-delivery documentation package and nonconformance handling: what should buyers confirm with CNC suppliers?

Delivery of precision-machined medical device metal parts should not include only a dimensional inspection report. Buyers need to confirm a set of mutually traceable records: material grade, specification, and batch; part production batch; surface-treatment batch; critical dimensional results; and cleaning, packaging, and release status. The specific documents should be based on the drawing, purchasing specification, quality agreement, and applicable regulations. Different projects do not necessarily require exactly the same supporting documentation.

What control points should the delivery documentation package cover?

• Material: The agreed material certification, grade, and heat number or other acceptable batch information, with traceability to the part batch.
• Machining and special processes: Necessary records for heat treatment, welding, passivation, electroplating, or other surface treatments, including the processing batch and required results.
• Inspection: Results for critical dimensions, appearance, burrs, and any required cleanliness checks. The report should specify the part batch, datums, measurement methods, or gage information.
• Cleaning and packaging: The status of final cleaning, handling, packaging, and labeling. At a minimum, labels should facilitate verification of the part number, quantity, batch, and processing status.
• Nonconformance records: Records of the quarantine, review, and disposition of issues such as out-of-tolerance dimensions, residual burrs, coating-thickness or color-difference deviations, and damaged packaging.

When a nonconformance is identified, the relevant batch should generally be quarantined first to prevent nonconforming parts from entering assembly or subsequent cleaning processes. Rework, reinspection, scrapping, acceptance under concession, or deviation release should then be determined according to the risk. After rework, it is not sufficient to update only the conclusion; evidence of reinspection and status confirmation should also be retained. Whether the supplier uses NCR, CAPA, or an electronic records system should be defined by the project; no single tool should be treated as a universally mandatory requirement.

Specify eight requirements during quoting and first-article approval

Before requesting a quote for medical CNC machining or approving the first article, it is recommended to specify material batch, critical surfaces, burr criteria, surface treatment, inspection report, cleaning method, packaging environment, and nonconformance handling separately in the drawing, quality agreement, or purchasing checklist. This clarifies what the supplier must control and defines in advance how to handle situations in which dimensions are acceptable but the packaging is damaged, residue remains on the surface, or burrs are still present at critical hole openings, reducing disputes at delivery.

FAQ: Common Questions About CNC Machining of Medical Device Metal Parts

Acceptance of CNC-machined medical device metal parts cannot be based solely on the dimensional inspection report. It must also consider material traceability, deburring, surface treatment, final cleaning, clean packaging, and delivery records. The following questions should be clarified in advance during quoting, first-article approval, and before batch release.
